Introduction
|
The
super 12 bit A/D-D/A card is a high precision data conversion system
for PC/486, Pentium, or compatibles. It contains two 12 bits digital to
analog channel with unipolar or bipolar format, and sixteen/eight 12
bits (single-ended / differential) analog to digital channels
conversion with unipolar or bipolar format.
|
Unpacking Information
|
|
| Check that your
super 12 bit A/D-D/A package includes the following items: |
 |
Super 12 bit
A/D-D/A board.
|
|
Demo Program.
|
|
Data Capture
Software Manual with Disk.
|
|
User manual.
|
|
Warranty form.
|
|
Hardware Installation
|
|
| Your super 12 bit
A/D-D/A card is designed to be inserted in any available slot in your
PC/486, Pentium or compatibles. In order to gain access to the
expansion slots, follow the steps listed below: |
1.
|
Turn
off all power to your computer and all peripheral devices before
installing your industry card. |
2.
|
Remove
the cover of the computer. |
3.
|
Insert
the SUPER 12 BIT AD/DA CARD into any available slot. Make sure the
adapter is firmly seated in the chosen slot. |
4.
|
Replace
the cover of the computer. |
5.
|
Connects the
expansion cable to 25 pin connectors. |
6.
|
Turn on the power
of your computer. |
|

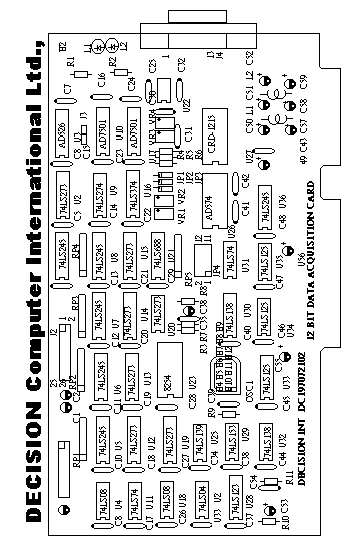

Hardware Configuration
|
|
Before you
use the A/D-D/A
card, you must ensure that the port address and jumper are set
correctly, the proper settings for the A/D-D/A card are described in
the following:
|
|
|
I/O
port Control
|
|
APPENDIX
|
|
|
|
