| 1. |
Terminal Board |
|

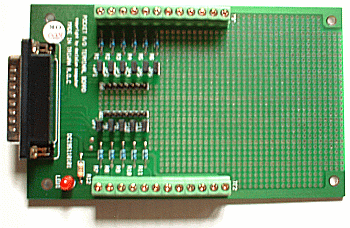

The figure of pocket A/D
terminal board is shown on the following page. |
|
| 2. |
Hardware
Configuration |
|
Before
you use the A/D terminal board, you must be sure to have this board
plugged into the pocket A/D.
The
LED in terminal board shows the power on status. When it turns to
light, we have power to this board, otherwise when it does not light,
no power is provided.
|
| 3. |
Pin
Assignment of T1 |
Pin
|
Description
|
Pin
|
Description
|
1
|
GND
|
14
|
NON
|
2
|
CH0
|
15
|
GND
|
3
|
CH1
|
16
|
GND
|
4
|
CH2
|
17
|
GND
|
5
|
CH3
|
18
|
GND
|
6
|
CH4
|
19
|
GND
|
7
|
CH5
|
20
|
GND
|
8
|
CH6
|
21
|
GND
|
9
|
CH7
|
22
|
GND
|
10
|
CH8
|
23
|
GND
|
11
|
CH9
|
24
|
GND
|
12
|
CH10
|
25
|
+5V
|
13
|
GND
|
|
|
|
| 4. |
Pin
Assignment of TB1 |
Pin
|
Description
|
1
|
CH0
|
2
|
GND
|
3
|
CH1
|
4
|
GND
|
5
|
CH2
|
6
|
GND
|
7
|
CH3
|
8
|
GND
|
9
|
CH4
|
10
|
GND
|
11
|
CH5
|
12
|
GND
|
|
| 5. |
Pin
Assignment of TB2 |
Pin
|
Description
|
1
|
CH6
|
2
|
GND
|
3
|
CH7
|
4
|
GND
|
5
|
CH8
|
6
|
GND
|
7
|
CH9
|
8
|
GND
|
9
|
CH10
|
10
|
GND
|
11
|
GND
|
12
|
+5V
|
|
| 6. |
The Use
of the Jumper |
|
 |
|
JPx
is used to select maximum input voltage, (where x is channel number)
when JPx is open, the maximum input voltage is 10V DC, when JPx is
short, the maximum input voltage is 5V DC. JP1 corresponds to
channel 0, and JP2 corresponds to channel 1, ... etc. |
